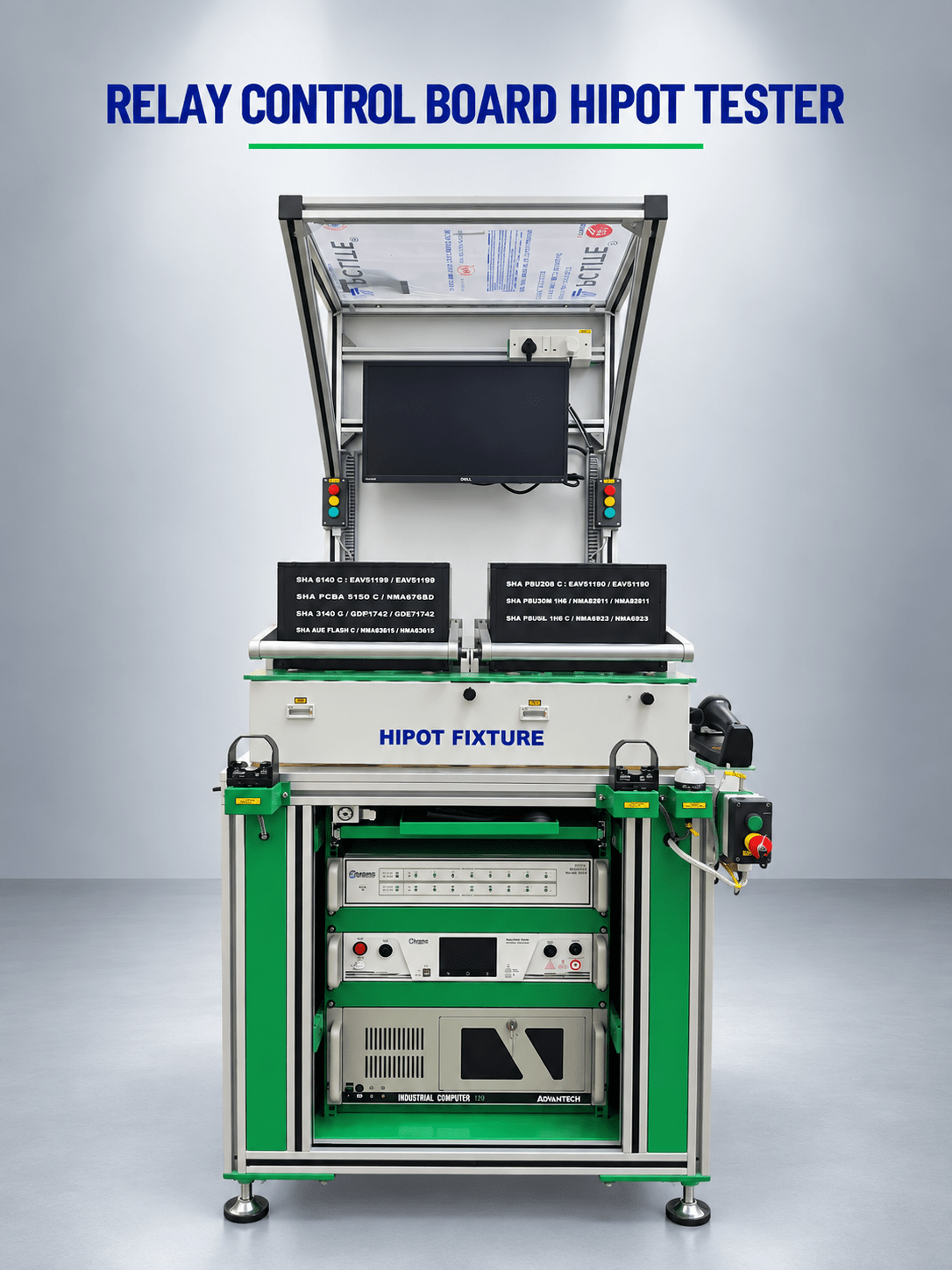

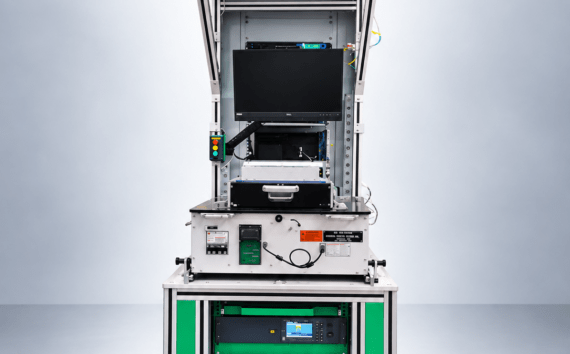

Relay Control Board Hipot tester

Automated PCBA Hipot testing system with ACW, DCW, continuity testing, and QR code scanning capabilities.

Project Scope

  • Automated high-pot testing of PCBA.
  • Development of an ATE rack with Ingun Fixtures.

Challenge

  • Automated high-pot testing of PCBA.
  • ACW, DCW and continuity testing.

Solution

  • Automated test software on the LabVIEW and TestStand platform.
  • Automated ACW, DCW and continuity tests.
  • OMNIA instruments with an 8-channel external scanner.
  • High-pot contactor control and feedback using Schneider M340 PLC.
  • ODU interface fixture for DUT connectivity.
  • Automatic QR code detection and scanning using Cognex scanners.
