Relay Control Board and CPU Functional Tester

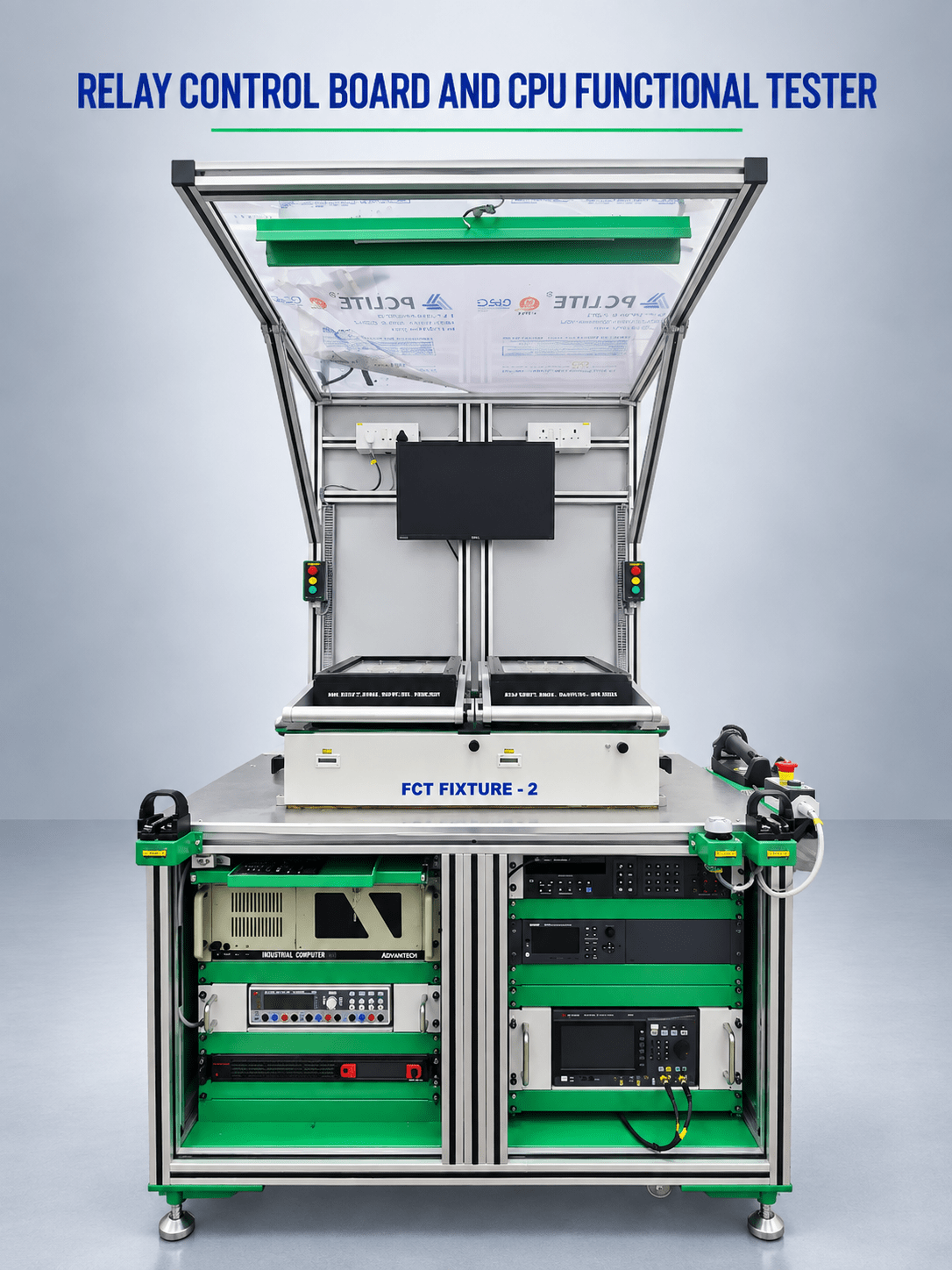

Automated CPU board tester with precision voltage calibration, QR code traceability, and functional verification for seven PCBA variants.

Project Scope

  • Automated testing of 7 Nos PCBAs.

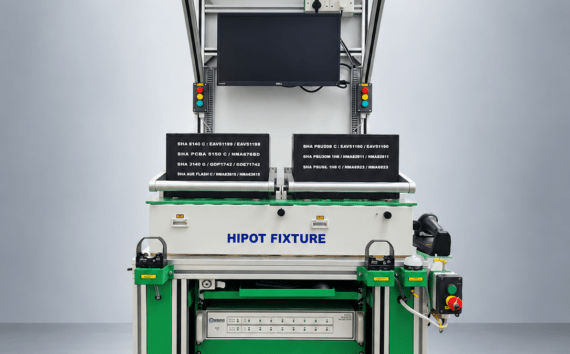

  • Development of an ATE rack with an ODU interface changeover fixture.

Challenge

  • Cognex area scanners automatically read QR codes.
  • Voltage Calibration of CPU boards with 0.009% accuracy.

Solution

  • Automated test software in the LabVIEW and TestStand platform.
  • Relay control and feedback through Schneider M340 PLC.
  • Calibration of CPU boards using NI CRIO and Analog output module with 0.009% accuracy.
  • Keysight 8.5 Digit  DMM to measure voltage signals with high accuracy for calibration.
  • ODU interface for fixture changeovers.
  • QR codes are automatically detected by Cognex area scanners.
  • DC power supply for digital input testing.
  • Keysight DAQ to measure test point voltages.
  • Keysight Function generator for Clock Pulse generation.
