Electronic Fuse Box Tester - HIL

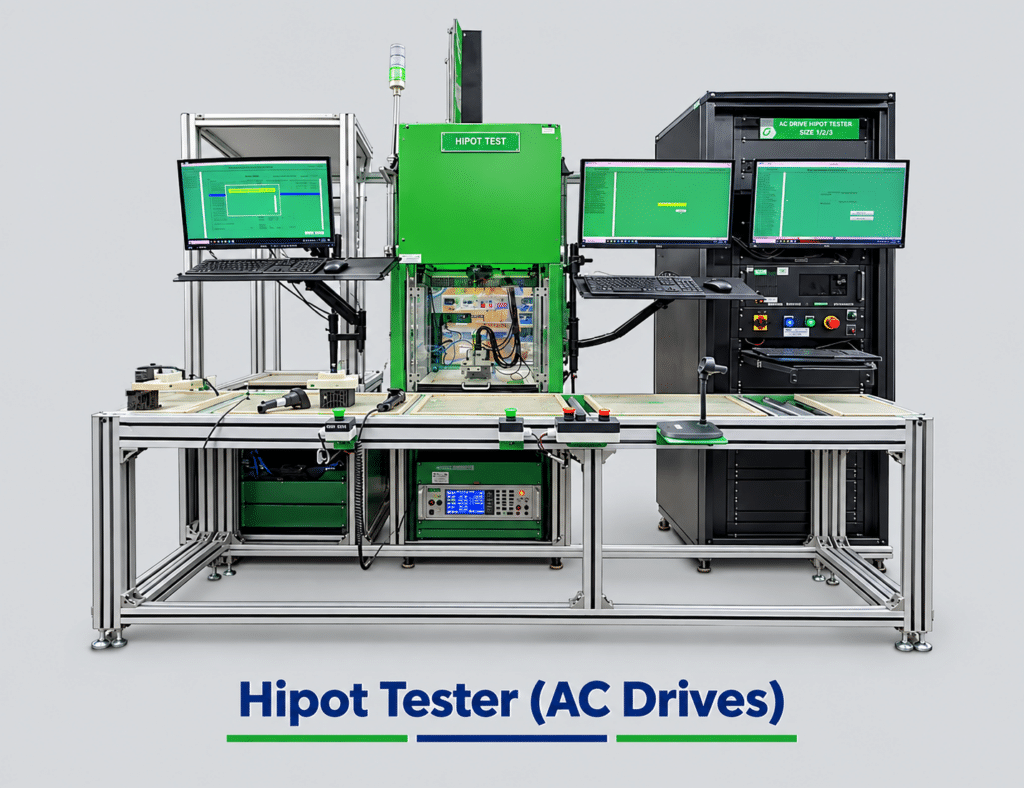

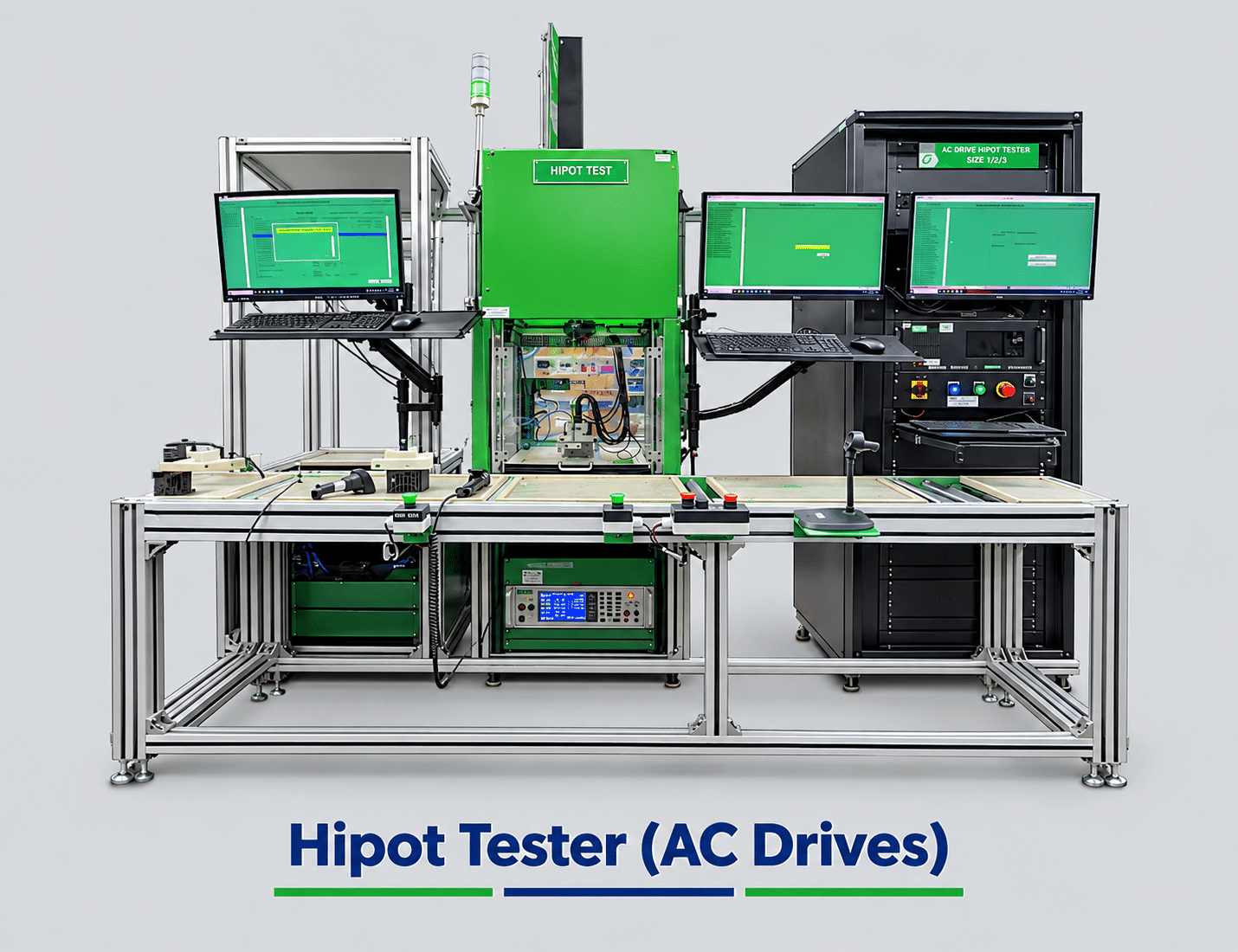

Automated NI LabVIEW-based Hipot tester for ACW, DCW, continuity, and high-pot testing of AC drives from 0.3 kW to 22 kW.

Category :
EV Industry
Date :
29th Sep, 2026
Link :
Rating :

Project Scope

Automated testing of Drives from 0.3 -22 kW.
Development of an ATE rack with drive-holding jigs.

Challenge

Automated high-pot testing of Drives from 0.3- 22 kW.
ACW.DCW and continuity testing.

Solution

Automated test software in the LabVIEW test platform.
Automated ACW, DCW, and continuity tests using OMNIA instruments.
High-pot contactor control by M340 PLC.
