Control Blocks-Calibration and Verification Tester

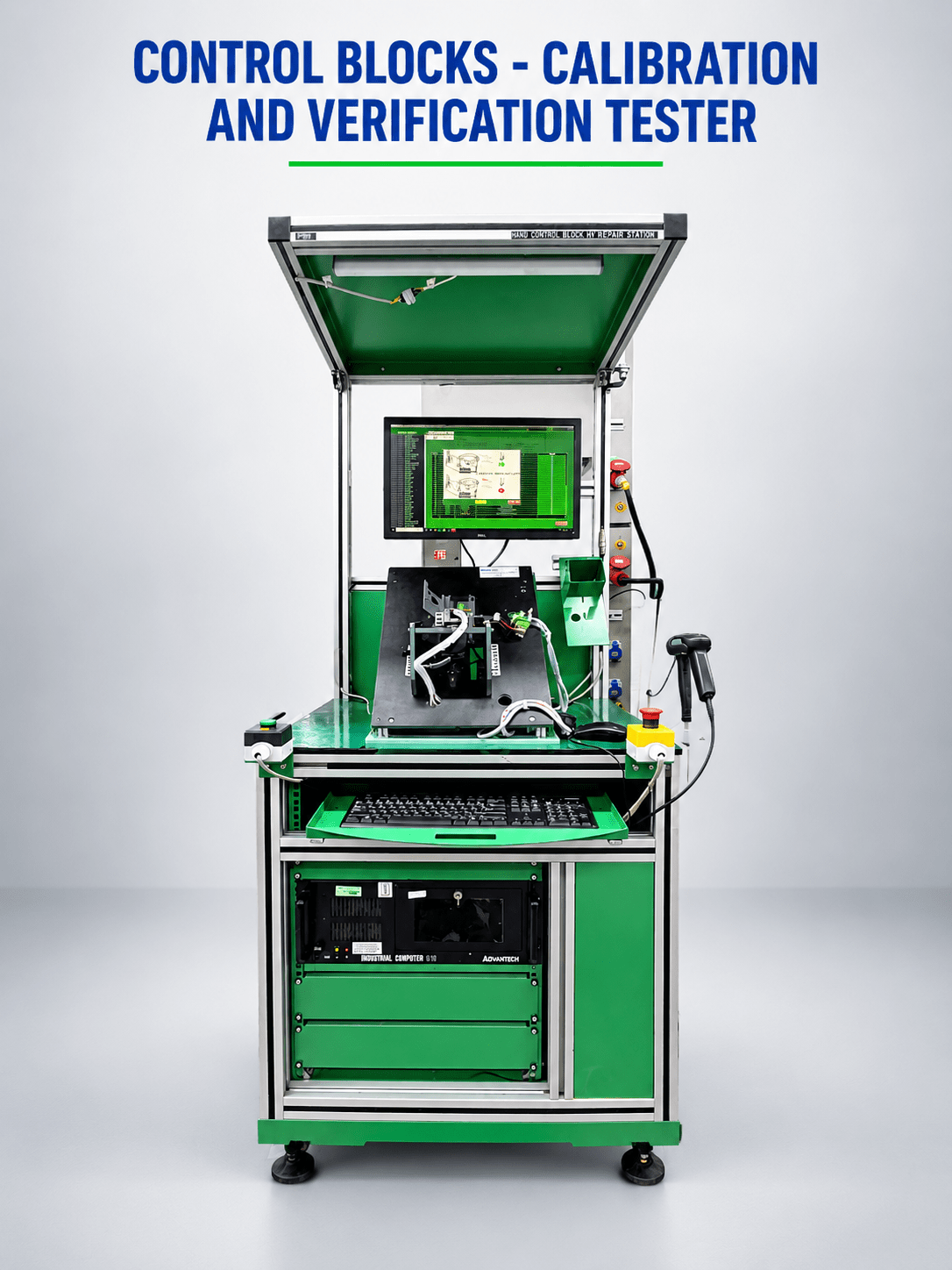

Automated Nano 3 Control Board tester with firmware flashing, analog input/output calibration, and functional validation capabilities.

Category :
Power electronics
Date :
20th Sep, 2026
Link :
Rating :

Project Scope

Automated testing of Nano 3 control Boards.
Development of an ATE rack pogo-pin fixture with a toggle clamp mechanism.

Challenge

Automated Firmware Flashing of Nano 3 Control Boards.
Calibration of Analog input and Analog output channels.

Solution

Automated test software on the LabVIEW test platform.
Automated Firmware Flashing of Nano 3 Control boards.
Calibration of Analog input and Analog output using Schneider M340 PLC AI/AO.
